Deskripsi

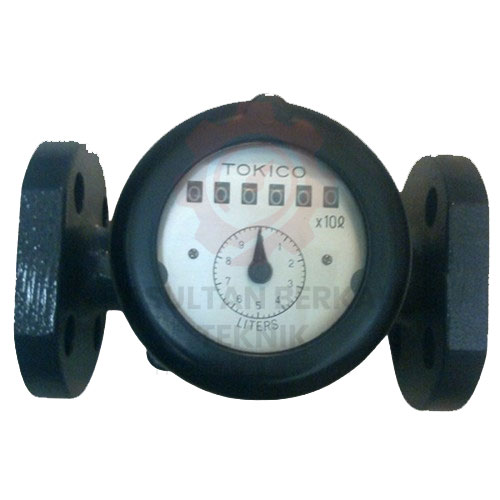

Tokico Flow meter 3/4 inch (20mm)
Spesifikasi :
Bore (mm) : 20
Accuracy : ±0.5%
Flow Range 1,2 ̴ 3cP Diesel, Light Oil : 120 ̴ 1,250 L/H
Flow Range 10cP Heavy Oil : 20 – 1,250 L/H
Max. Working Pressure : 10 kgf/cm²
Hydraulic Test Pressure : 20 kgf/cm²
Max. Working : Standard : 80°C for diesel & light oil
Temperature : Optional : 120°C for heavy oil
Flange Rating : JIS 10 kgf/cm²FF
Material – Body : Cast Iron (FC25)
Material – Rotor : Resin
Counter Unit : Integrating pointer and integrating counter
Flow Direction : Right → Left
Paint Color : Munsell 1.4PB3.1 ½
