Deskripsi

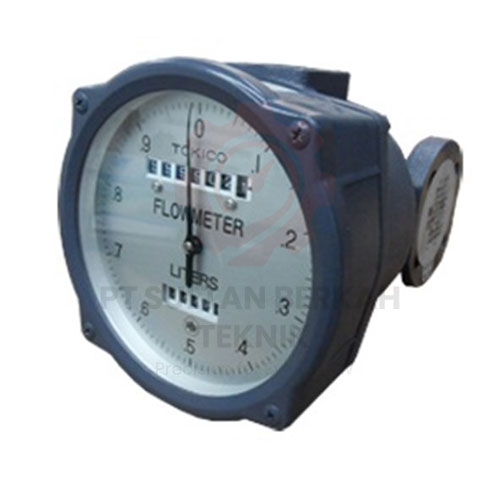

Flow Meter Tokico 1/2 Inch (15mm) – FGBB 423-04X
Positive Displacement Flowmeter – Tokico
Spesifikasi Utama
- Diameter: 1/2″ (15mm)
- Tipe: Direct Reading
- Akurasi: ±0.5%
- Maks. Working Pressure: 10 kgf/cm²
- Hydraulic Test Pressure: 20 kgf/cm²
- Maks. Working Temperature: 100°C
- Flange Rating: JIS 10 kgf/cm² FF
- Counter: Re-set Counter
Flow Range – FGBB 423-04X (15mm / 1/2″)
- Kerosene, Light Oil (1.2–3 cP): 10–200 L/hour
- Heavy Oil (10 cP): 5–200 L/hour
- B, C Heavy Oil (50–300 cP): N/A
Seri Tokico Lainnya
- Tokico FGBB 423BAL-00X / 02X (Reset 04X) → 0.5 inch
- Tokico FGBB 631BDL-00X / 02X (Reset 04X) → 0.75 inch
- Tokico FGBB 835BDL-00X / 02X (Reset 04X) → 1 inch
- Tokico FRO 0438-04X → 40mm / 1.5 inch
- Tokico FRO 0541-04X → 50mm / 2 inch
- Tokico FRP 0845BAA-04X2-X → 80mm / 3 inch
- Tokico FRP 1051 → 100mm / 4 inch
Fill-Rite Type (Opsional Alternatif)
- FR806CL – 1 inch
- FR901L – 1.5 inch
- FR820 – 1 inch
